新款860五谷杂粮磨粉机优势说明(  Advantages of New Type 860 Whole Grains Milling Machine )：

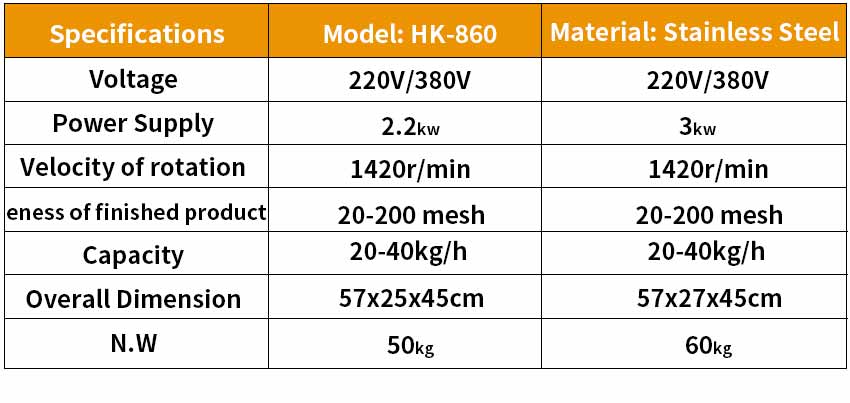

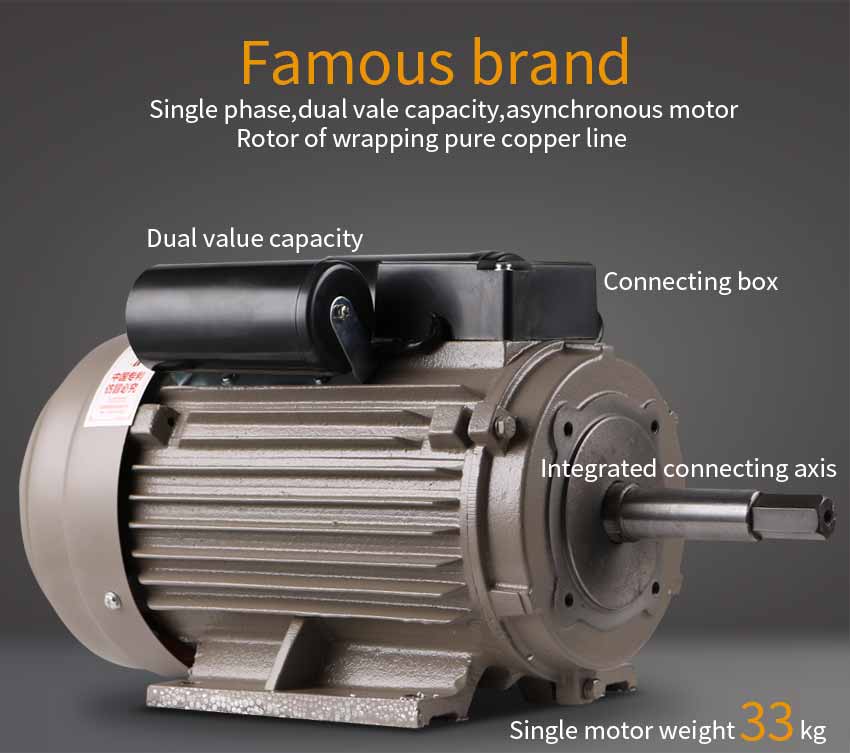

1.The new type 860 milling machine no longer used motor with low power supply.220V has 2.2KW and 3KW for option and 380V only matches with 2.4KW . The new type one is equipped with longer motor shaft than old one, which only use the other axis to sleeve on the motor bearings to further ensure the concentricity angle and operation of the machine becomes more stability, less vibration and less noise.

2. Adding silica gel pad between static grinding blade and machine wall,make sure it can reduce vibration and reach the effect of milling blade micro-adjustment.Ensure that double-blade grinding board is firmer,grinding powder is finer and lower noise.

3. The space both in the middle of a motor and a motor fixing plate and the motor fixing plate below were added with rubber pad to further strengthen the shock absorption and noise reduction effect.

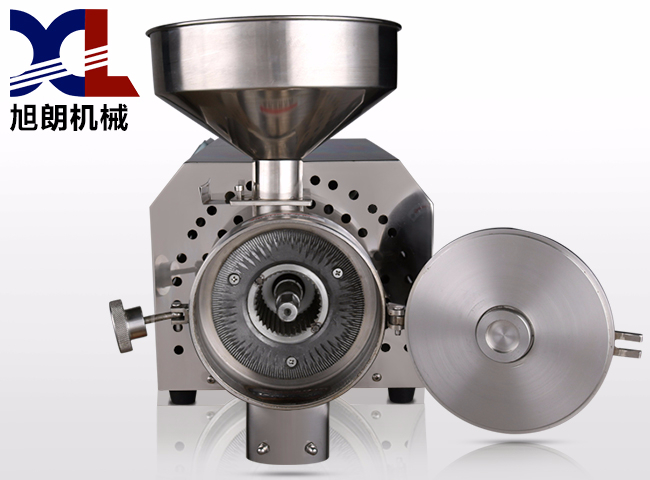

4.The structure between the machine door cover and milling cavity adopts the tight fabrication way and step position assembling way to ensure no leakage of powder and the concentricity angle of top pad of regulator and six angle sets of grinding disc,reduce abrasion,make it lower vibration and noise.

5.The slope of grinding cavity,which is located on the position of fixed pulverizing blade,adopts scientific design to further guarantee the fineness of milling powder in order to reach instant taste effect entering the mouth.

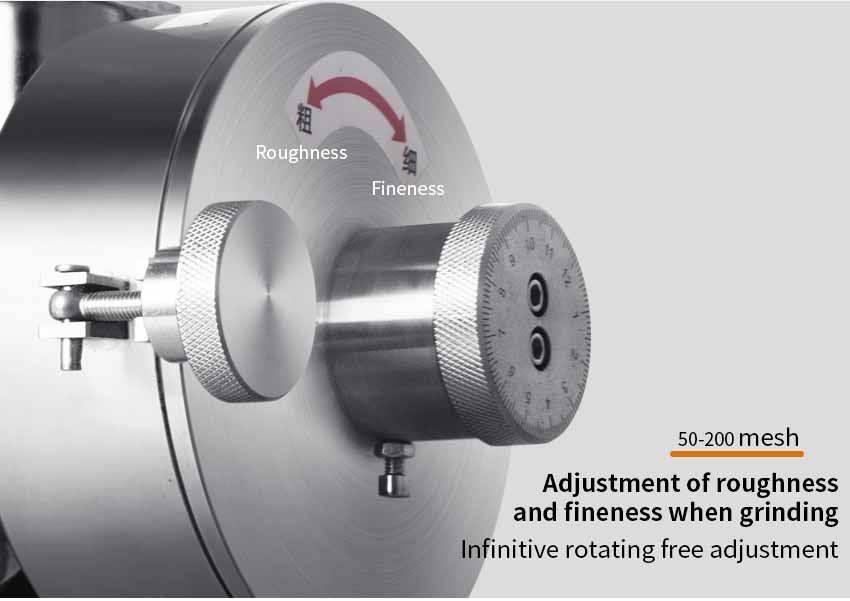

6.Molar of regulator adopts advanced mechanical processing to ensure the fabrication precision and reach the convenient adjustment, tight installation, less noise.

7.After the pulverizing blades and scraping blades are installed on the grinding disc of the machine,the computer detects motion balance to make sure the balance of the concentricity degree and gravity,to reduce the vibration and noise at maximum.

8.There is no bearing in the middle of chassis of grinding machine and motor.It is convenient for customers to dismantle it,reduce the troubleshooting and promote the machine quality.

9.Comparing to the old one,the new one has the advantages which is good unloading,more fineness of powder,less noise and lower vibration.

五谷杂粮磨粉机工作原理 ( Working Principle )

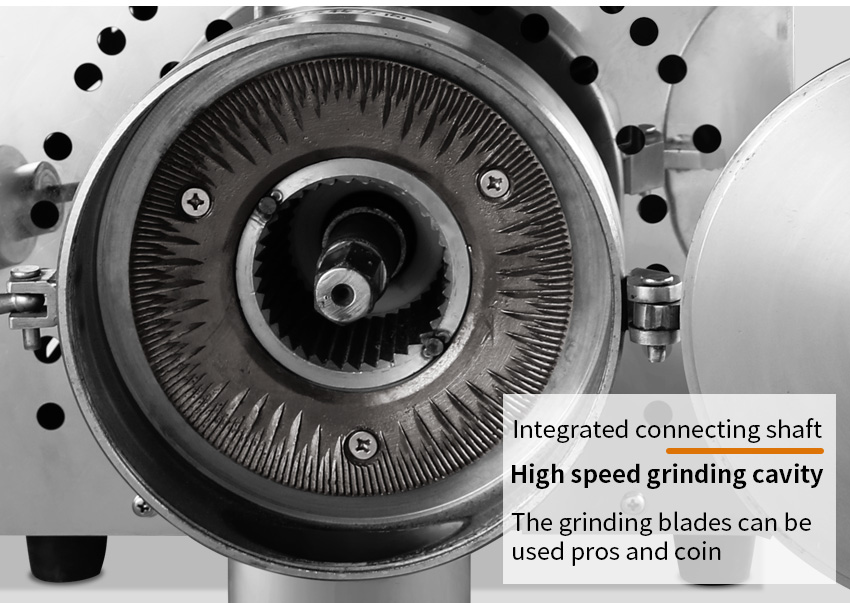

When the motor of milling machine works,both the connecting axis and grinding disc covering on the connecting shaft runs together.Until the milling material enters the powder grinding sleeve from the feeding hopper,between the auger of grinding disc and powder milling sleeve relatively runs.It will cause strong crushing force to make the feeding material mince into small particles.After the crushing particles is brought into the middle of two friction blades under the spiral motion of grinding auger.With the relative motion of milling teeth,the feeding material will be minced small powder particles in a short time,the powder pours out from the ditch of grinding blade and swings everywhere.Simultaneously,the finished powder flow out from the outlet under the motion of the scraping board fixed on the grinding disc.
